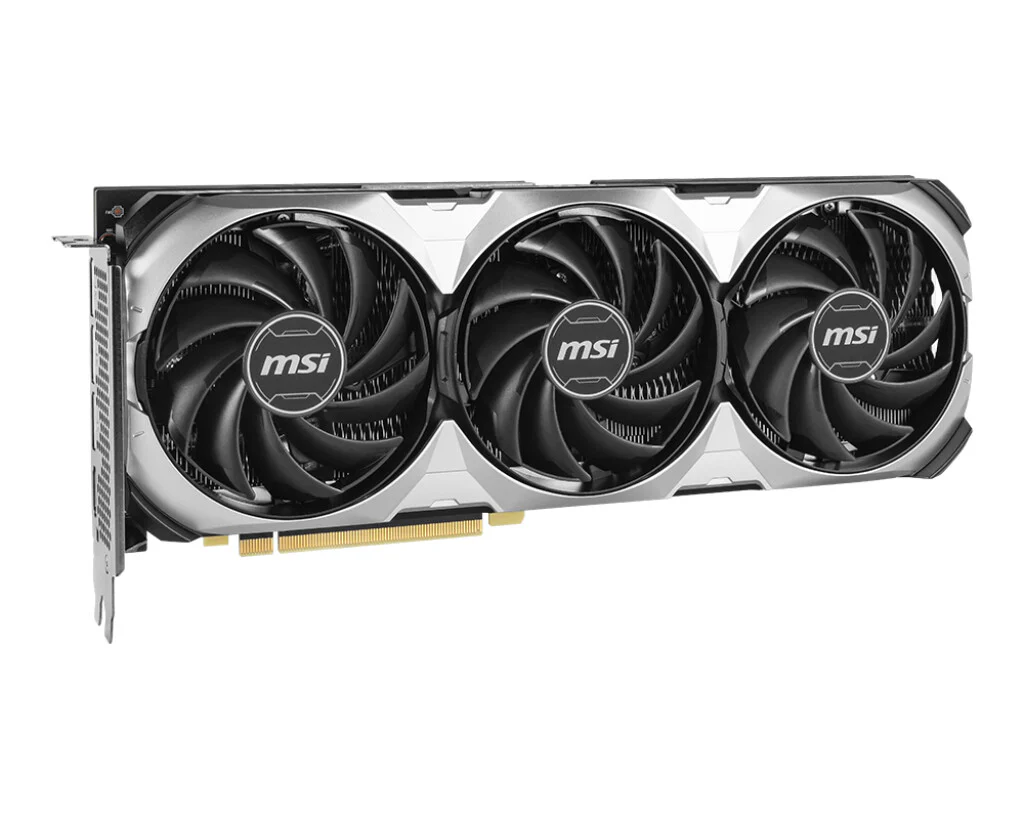

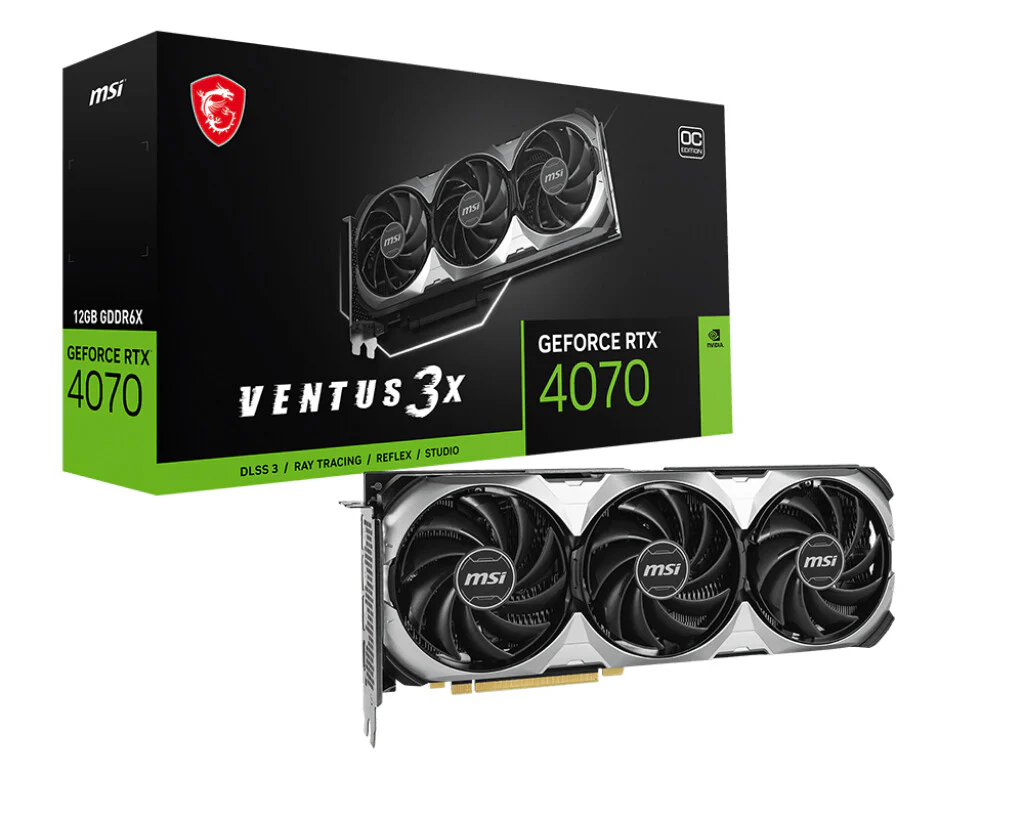

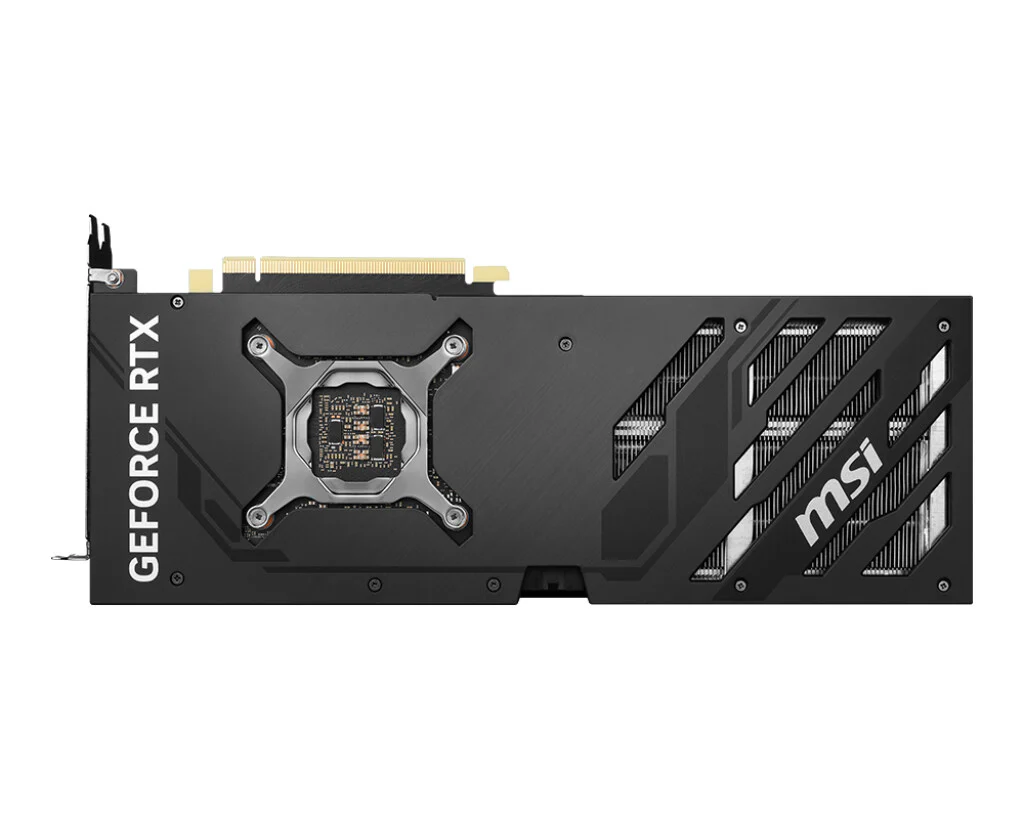

MSI VENTUS 3X E 12G OC - NVIDIA 12 GB GDDR6X GeForce RTX 4070 graphics card
TAKE THE ESSENTIALS
VENTUS brings a fundamentally solid experience to users looking for a performance graphics card. A sharp-looking updated design with TORX FAN 4.0 and Airflow Control lets VENTUS breeze through any task.
REVOLUTIONARY
TRIPLE-FAN THERMAL
Three fans on a huge heatsink ensures a cool and quiet experience.
COREPIPE
Core Pipes are precision-crafted to make maximum use of the available space. A squared section of heat pipes fully touch the GPU baseplate to then spread heat along the full length of the heatsink.
COPPER BASEPLATE
Heat from the GPU and memory modules is immediately captured by a solid nickel-plated copper baseplate and then rapidly transferred to an array of heat pipes. This widening of the thermal transfer systems with highly efficient mechanisms improves overall efficiency.
AIRFLOW CONTROL
Stay stealthy with Airflow Control which improves airflow dynamics. Deflectors provide additional surface area and guide air to where it’s needed for maximum cooling.
TORX FAN 4.0
TORX FAN 4.0 is built on teamwork, with pairs of fan blades bound together with a linked outer ring design that focuses airflow into the Triple-Fan cooling system.
DrMos
DrMOS power stage solutions provide great efficiency with low power loss and enhanced voltage controls.
Fuse
Additional fuses built into the custom PCB provide additional safeguards against electrical damage.
BRINGING IT ALL TOGETHER
MSI's exclusive MSI Center software helps you get the most out of your MSI products. Monitor, tweak, and optimize in real-time with just a few clicks.
| Processor | |
|---|---|
| Maximum displays per videocard | 4 |
| Processor boost clock speed | 2505 MHz |
| Processor frequency | 2520 MHz |
| CUDA cores | 5888 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce RTX 4070 |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Data transfer rate | 21 Gbit/s |
| Memory bus | 192 bit |
| Graphics card memory type | GDDR6X |
| Discrete graphics card memory | 12 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4a |
| HDMI version | 1.2a |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express 4.0 |
| Performance | |
|---|---|
| NVIDIA G-SYNC | Yes |
| Dual Link DVI | No |
| HDCP | Yes |
| OpenGL version | 4.6 |
| DirectX version | 12 Ultimate |
| TV tuner integrated | No |
| Design | |
|---|---|
| Product colour | Black, Silver |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of fans | 3 fan(s) |
| Cooling technology | MSI TORX Fan 4.0 |
| Cooling type | Active |
| Power | |
|---|---|
| Power consumption (typical) | 200 W |
| Supplementary power connectors | 1x 8-pin |
| Minimum system power supply | 650 W |
| General | |
|---|---|
| Product Family | VENTUS |
| Weight & dimensions | |
|---|---|
| Depth | 43 mm |
| Height | 120 mm |
| Width | 834 mm |
| Weight | 308 g |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 1.16 kg |
