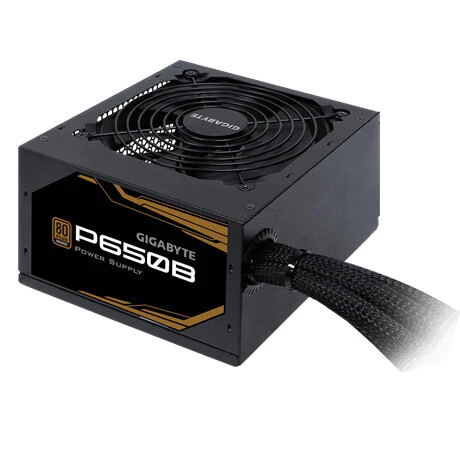

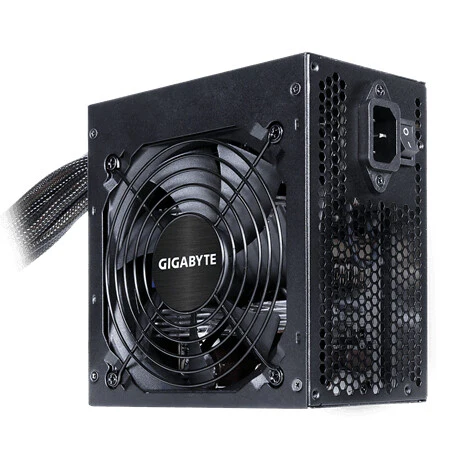

Gigabyte P650B - 650W 80+ Bronze Non-Modular Power Supply Unit
80 Plus Bronze Certified
80 Plus certified ensures the better power efficiency. Less power waste reduces the heat and fan noise. P650B can be up to 89% efficiency.
Reliable Mesh Braided Cable
P650B provides the best solution for the system builds. The mesh braided cable reduces the clutter and improves the airflow in the case.
100% Japanese Capacitors
All capacitors are high quality Japanese capacitors, to produce the efficient performance and to ensure the longer reliability.
Single +12V Rail
Single +12V rail provides the best power output, stability and compatibility for the hardware. And it is the best design for installation.
120mm Hydraulic Bearing (HYB) Fan
120mm Hydraulic Bearing fan optimizes the noise reduction and the thermal performance. The fan speed is adjusted according to the automatic power detection. The Hydraulic Bearing fan provides longer and more stable life time.
| Power | |
|---|---|
| Power protection features | Over power, Over voltage, Overcharge, Short circuit, Under voltage |
| Efficiency | 85% |
| Max output current (+5Vsb) | 2.5 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5V) | 15 A |
| Max output current (+12V) | 0.3 A |
| Max output current (+3.3V) | 18 A |
| Combined power (+5Vsb) | 12.5 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5V) | 108 W |
| Combined power (+12V) | 648 W |
| Combined power (+3.3V) | 108 W |
| Power Factor Correction (PFC) type | Active |
| Input current | 9, 4 A |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Total power | 650 W |
| Ports & interfaces | |
|---|---|
| Cabling type | Non-Modular |
| PCI Express connector | Yes |
| Floppy disk drive connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 4 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| Number of SATA power connectors | 6 |
| Motherboard power connector | 20+4 pin ATX |
| Performance | |
|---|---|
| Certification | CE/CCC/BSMI/KCC/EAC/UL/TUV/RCM/FCC/PSE |
| Mean time between failures (MTBF) | 100000 h |
| ATX version | 2.31 |
| 80 PLUS certification | 80 PLUS Bronze |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| Design | |
|---|---|
| Fan location | Top |
| Number of fans | 1 fan(s) |
| Fan diameter | 12 cm |
| Product colour | Black |
| Weight & dimensions | |
|---|---|
| Height | 86 mm |
| Depth | 150 mm |
| Width | 140 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733020 |
