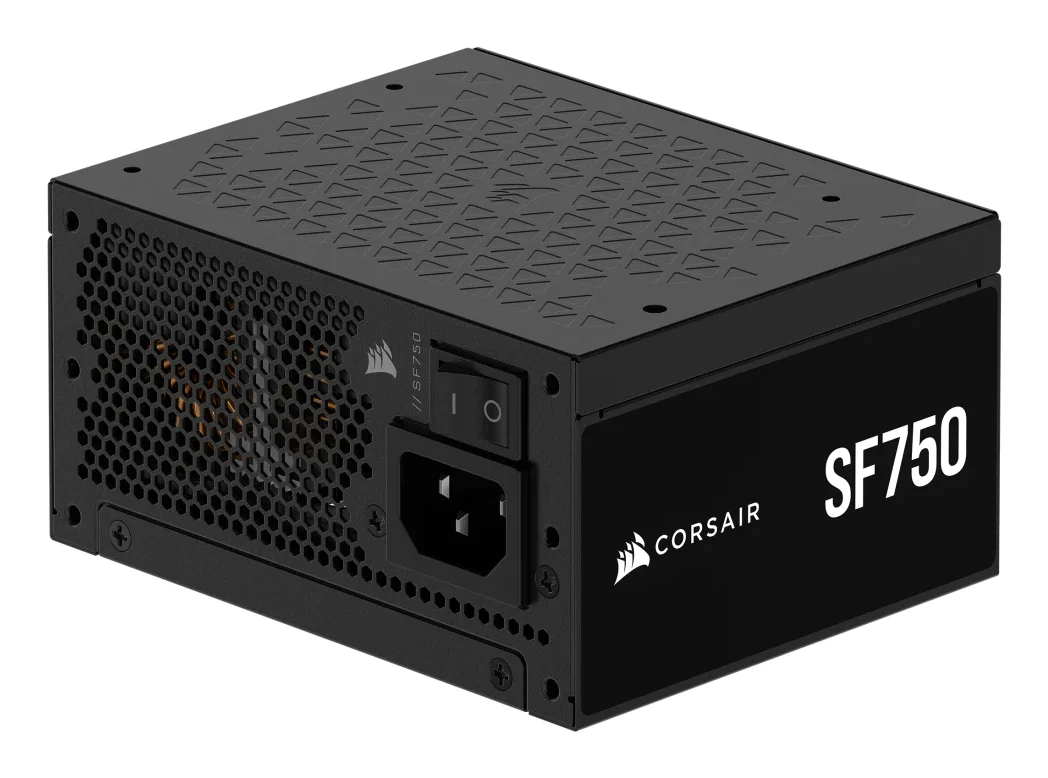

Corsair SF750 - 750W 80+ Platinum Fully Modular Power Supply Unit
SMALL AND MIGHTY
Don't let the size fool you – this SFX power supply packs 80 PLUS Platinum-rated power, perfect for the most power-dense small form-factor PCs
50°C CONTINUOUS OPERATING TEMPERATURE
Ensures reliable power for your SFF PC, even under high-stress conditions.
105°C-RATED CAPACITORS
Built with 100% Industrial-grade, 105°C-rated Japanese electrolytic capacitors for unwavering power and reliability.
ATX 3.1 CERTIFIED
The ATX 3.1 standard demands a high level of reliability and power efficiency. While many CORSAIR PSUs meet these requirements, SF Series PSUs are formally certified for ATX 3.1 compliance.
QUIET OPERATION WITH ZERO RPM MODE
A fluid dynamic bearing cooling fan keeps noise to a minimum, with Zero RPM mode to eliminate fan noise completely at low to medium loads.
FULLY MODULAR TYPE 5 MICRO-FIT CONNECTORS
Connect only what you need, with flexible cabling to take up less space for tidy cable management in small cases.
| Cooling | |
|---|---|
| Fan diameter | 9.2 cm |
| Number of fans | 1 fan(s) |
| Cooling type | Active |
| Design | |
| 80 PLUS certification | 80 PLUS Platinum |
| Product colour | Black |
| Fan diameter | 9.2 cm |
| Number of fans | 1 fan(s) |
| Cooling type | Active |
| Power | |
| Total power | 750 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 5 - 10 A |
| Combined power (+3.3V) | 130 W |
| Combined power (+12V) | 750 W |
| Combined power (+5V) | 130 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 62.5 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Overheating, Over current, Over power, Over voltage, Short circuit |
| Ports & interfaces | |
| Motherboard power cable length | 30 cm |
| PCI Express power cable length | 75 cm |
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 3 |
| Number of PATA power connectors | 1 |
| PCI Express power connectors (6+2 pin) | 2 |
| ATX Power connector (24-pin) | Yes |
| Cabling type | Fully-Modular |
| EPS power connector (4+4 pin) | Yes |
| ATX power connector (12+4 pin) | Yes |
| Performance | |
| Power supply unit (PSU) form factor | ATX |
| Silent mode | Yes |
| 80 PLUS certification | 80 PLUS Platinum |
| Purpose | PC |
| ATX version | 3.1 |
| Mean time between failures (MTBF) | 100000 h |
| Bearing technology | FDB |
| Packaging content | |
| Cables included | AC |
| Weight & dimensions | |
| Width | 125 mm |
| Depth | 100 mm |
| Height | 63.5 mm |
| Weight | 2.15 kg |
| Packaging data | |
| Cables included | AC |
| Package type | Box |
| Certificates | |
| 80 PLUS certification | 80 PLUS Platinum |
