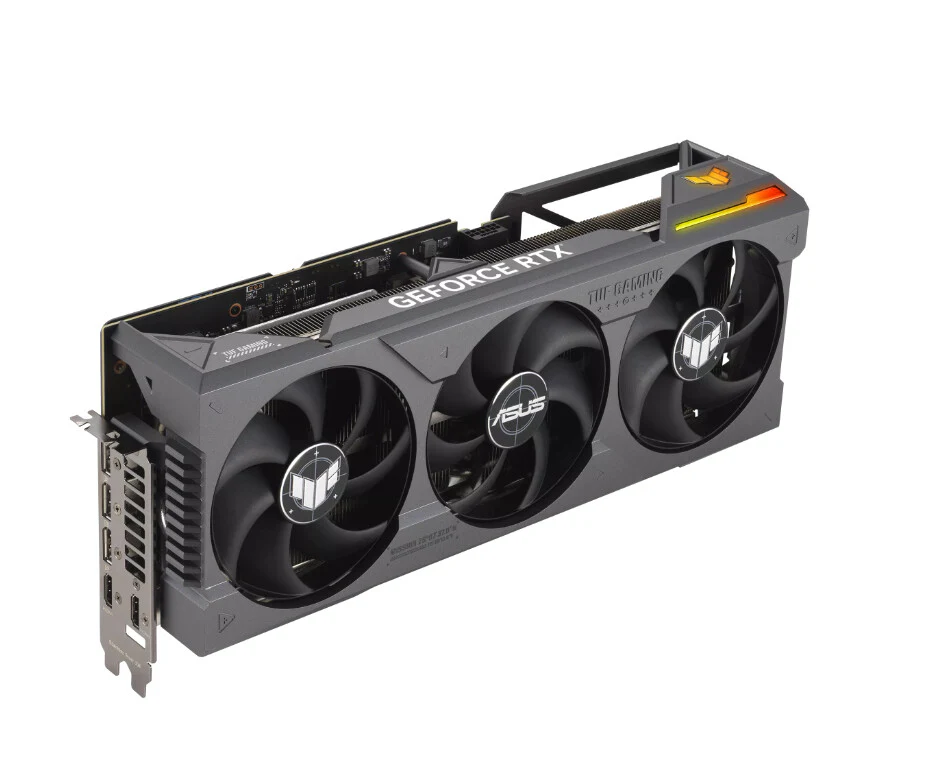

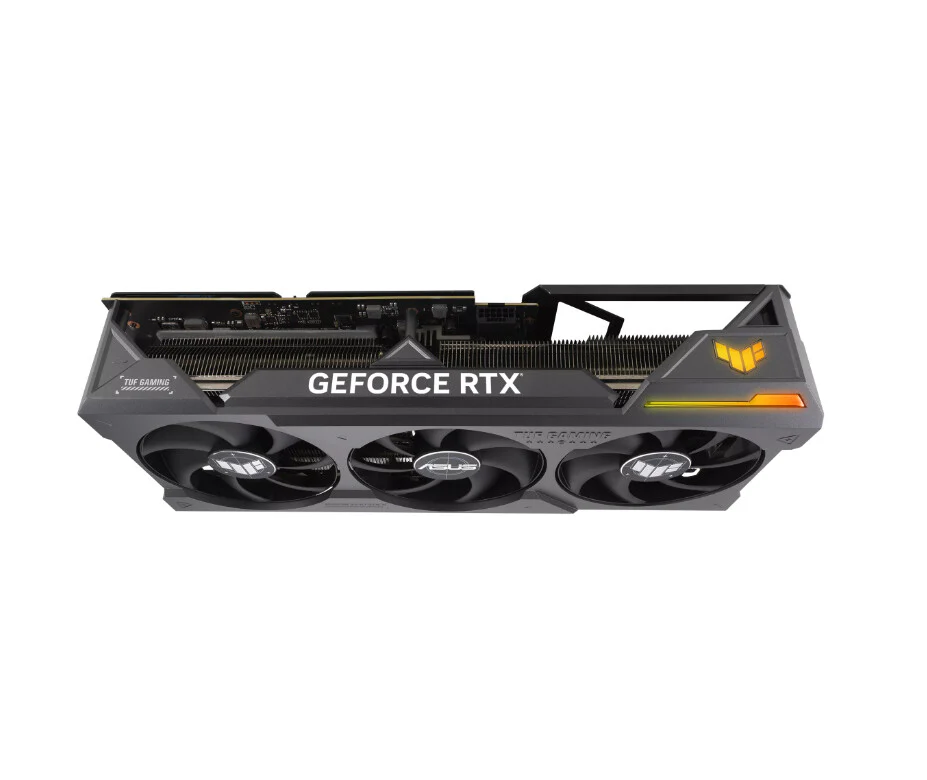

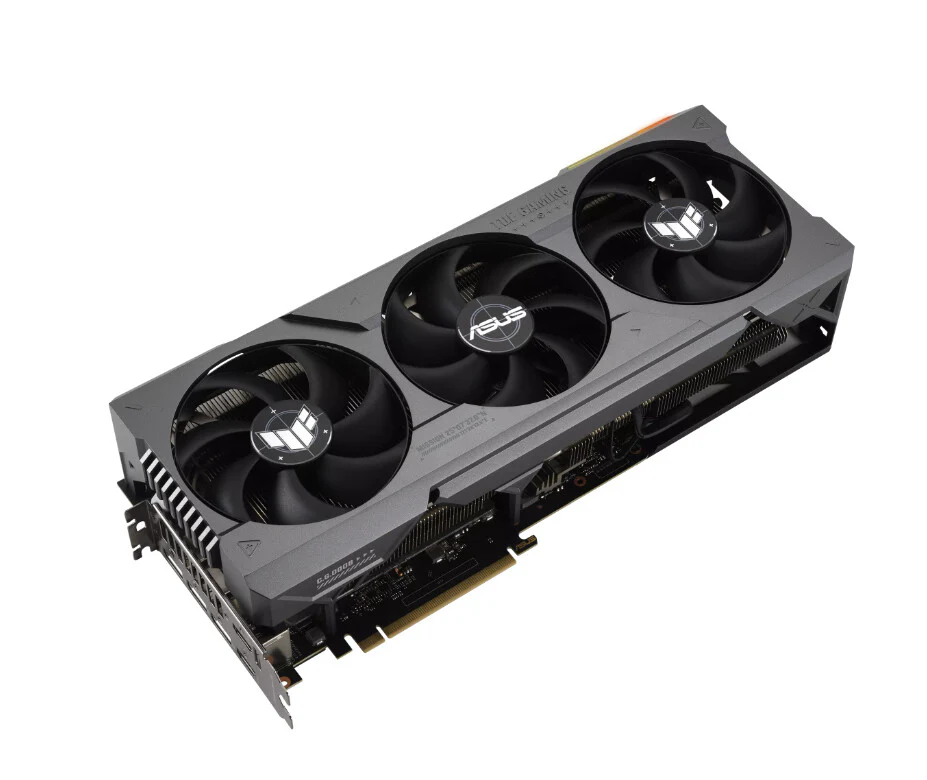

ASUS TUF Gaming - NVIDIA 24 GB GDDR6X GeForce RTX 4090 graphics card
ASUS TUF Gaming GeForce RTX® 4090 24GB GDDR6X optimized inside and out for lower temps and durability.
Armed for Flow
The NVIDIA Ada Lovelace architecture elevated by buffed cooling and power delivery, and backed with an arsenal of rugged reinforcements to cover your six. Lock, load, and dominate with the TUF Gaming GeForce RTX® 4090.
Axial-tech Upgrades
Bigger and better. Axial-tech fans spin on dual-ball bearings and have been scaled up to propel 23% more air through the card, setting the stage for lower temperatures, less noise, and higher performance.
Well-maintained Formation
The two side fans spin counterclockwise to minimize turbulence and maximize air dispersion through the heatsink. All three fans come to a standstill when GPU temps are below 50 Celsius, letting you play less-demanding games or perform light tasks in relative silence. Fans start up again when temps are over 55 Celsius, referencing a speed curve that balances performance and acoustics for work or play.
Phase That Blaze
A vapor chamber and generously sized heatsink combo efficiently soak up heat from the GeForce RTX 4090 GPU so that it can be whisked away by the three Axial-tech fans.
Military-grade 20K Capacitors
A lineup of capacitors rated to last 20,000 hours at 105 Celsius brings higher temperature and ripple tolerance to the GPU power rail, arming the card for long-term deployment in challenging conditions.
Metal Exoskeleton
A high-quality diecast shroud and aluminum backplate prevent PCB flex and feature large vents to further increase heat dissipation.
Auto-Extreme Technology
Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.
Light ‘em Up!
Aura-compatible ARGB lighting on the shroud adds a dash of customizable color or functional effects to your build. Pair up with a vast range of compatible system components and coordinate the glow to create a theme that’s uniquely you.
| Processor | |
|---|---|
| Parallel processing technology support | Not supported |
| Maximum displays per videocard | 4 |
| Processor frequency (OC mode) | 2550 MHz |
| Processor boost clock speed | 2520 MHz |
| CUDA cores | 16384 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce RTX 4090 |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Data transfer rate | 21 Gbit/s |
| Memory bus | 384 bit |
| Graphics card memory type | GDDR6X |
| Discrete graphics card memory | 24 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4a |
| HDMI version | 2.1a |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 2 |
| Interface type | PCI Express 4.0 |
| Performance | |
|---|---|
| AMD FreeSync | No |
| NVIDIA G-SYNC | Yes |
| Dual Link DVI | No |
| HDCP | Yes |
| HDCP version | 2.3 |
| OpenGL version | 4.6 |
| TV tuner integrated | No |
| Design | |
|---|---|
| Product colour | Black |
| Illumination | Yes |
| Illumination colour | Blue, Green, Red |
| Number of slots | 3.65 |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of fans | 3 fan(s) |
| Cooling type | Active |
| Power | |
|---|---|
| Supplementary power connectors | 1x 16-pin |
| Minimum system power supply | 850 W |
| General | |
|---|---|
| Product Family | TUF Gaming |
| Weight & dimensions | |
|---|---|
| Depth | 72.6 mm |
| Height | 160 mm |
| Length | 348.2 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Manual | Yes |
