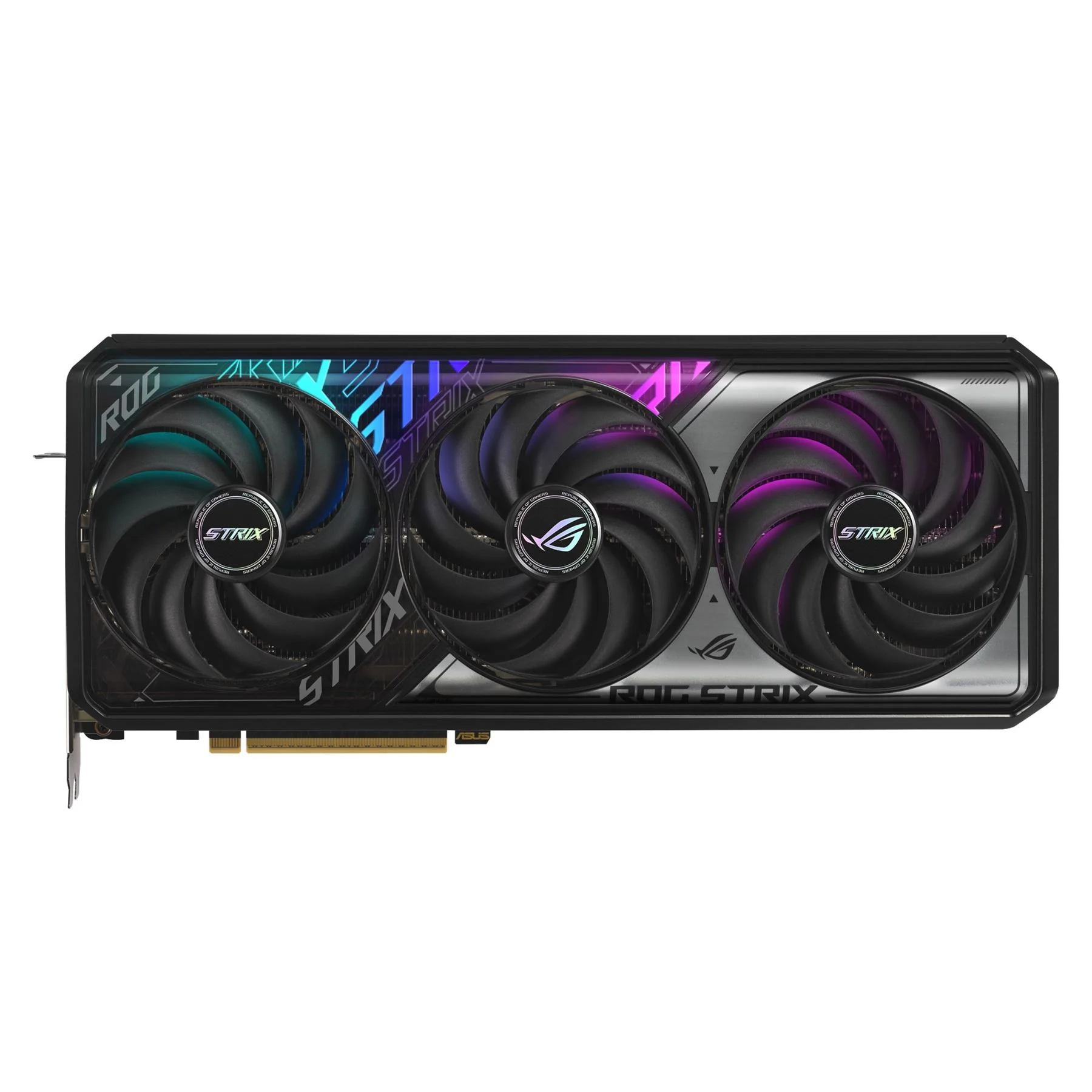

ASUS ROG -STRIX-RTX5070-O12G-GAMING NVIDIA GeForce RTX 5070 12 GB GDDR7
ASUS ROG -STRIX-RTX5070-O12G-GAMING NVIDIA GeForce RTX 5070 12 GB GDDR7
Key Features
- Graphics Processor:
- Interface Type:
- Memory Type:
- Memory Bus:
- Maximum Resolution:
- Ports:
Overview
ROG Strix GeForce RTX™ 5070
FIND YOUR EDGE
The premium performance ROG Strix GeForce RTX 5070, featuring advanced cooling system with axial-tech fan, phase-change GPU thermal pad and MaxContact design, lowering GPU temperature to reach higher performance. Aura sync provides endless possibilities for personalization with color or functional effects.
Cooling Expertise
Axial-tech Upgrades
Bigger and better. Axial-tech fans spin on dual-ball bearings and have been scaled up to propel more air through the card, setting the stage for lower temperatures, less noise, and higher performance.
Reverse Rotation and 0dB Technology
The two side fans spin counterclockwise to reduce turbulence and improve airflow through the heatsink. All three fans stop when GPU temperatures are below 50°C, ensuring quiet operation during light tasks or less-demanding games. They resume operation above 55°C, following a speed curve that optimizes performance and noise levels.
Vented Backplate
Large backplate vents significantly enhance heat dissipation, helping to keep the GPU cooler during intense tasks. This additional airflow helps ensure optimal temperatures, boosting performance, longevity and stability by defending against overheating and thermal throttling.
A shorter PCB with optimized component and trace layouts reduces power loss and allows heat to escape through a large backplate vent.
MaxContact Design
MaxContact is an ASUS-exclusive manufacturing technique that effectively increases the surface area of the GPU heat spreader by 5% for improved thermal efficiency.
Phase-Change GPU Thermal Pad
By melting to effectively fill the gaps between the GPU and the thermal module, a premium phase-change GPU thermal pad provides superior thermal conductivity and enhanced heat dissipation, ensuring optimal performance and longevity for graphics cards under heavy loads.
| Processor | |
|---|---|
| Graphics processor family | NVIDIA |
| Processor boost clock speed | 2655 MHz |
| Parallel processing technology support | Not supported |
| Maximum displays per videocard | 4 |
| CUDA cores | 6144 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce RTX 5070 |
| Processor frequency (OC mode) | 2685 MHz |
| Memory | |
| Discrete graphics card memory | 12 GB |
| Data transfer rate | 28 Gbit/s |
| Memory bus | 192 bit |
| Graphics card memory type | GDDR7 |
| Ports & interfaces | |
| HDMI version | 2.1b |
| Mini HDMI ports quantity | 0 |
| Mini DisplayPorts quantity | 0 |
| HDMI ports quantity | 2 |
| DisplayPort version | 2.1b |
| DVI-I ports quantity | 0 |
| DVI-D ports quantity | 0 |
| DisplayPorts quantity | 3 |
| Interface type | PCI Express 5.0 |
| Thunderbolt 3 ports quantity | 0 |
| Video | |
| OpenGL version | 4.6 |
| HDMI version | 2.1b |
| HDCP | Yes |
| Dual Link DVI | No |
| CUDA cores | 6144 |
| Performance | |
| NVIDIA G-SYNC | Yes |
| Virtual Reality (VR) ready | Yes |
| OpenGL version | 4.6 |
| HDCP | Yes |
| Dual Link DVI | No |
| TV tuner integrated | No |
| HDCP version | 2.3 |
| NPU performance up to | 1044 TOPs |
| Overclocked (OC) edition | Yes |
| Design | |
| Number of fans | 3 fan(s) |
| Illumination colour | Multi |
| Illumination | Yes |
| Cooling type | Active |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Product colour | Multicolour |
| Number of slots | 3.2 |
| Cooling technology | ASUS Axial-tech |
| Power | |
| Supplementary power connectors | 1x 16-pin |
| Minimum system power supply | 750 W |
| Weight & dimensions | |
| Number of slots | 3.2 |
| Weight | 1.59 kg |
| Height | 147.3 mm |
| Depth | 64 mm |
| Length | 332 mm |
| Technical details | |
| Cooling type | Active |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Product colour | Multicolour |
| TV tuner integrated | No |
| System requirements | |
| Minimum system power supply | 750 W |
| Packaging data | |
| Package type | Box |
| Package width | 420 mm |
| Package height | 126 mm |
| Package depth | 226 mm |
| Package weight | 2.54 kg |
