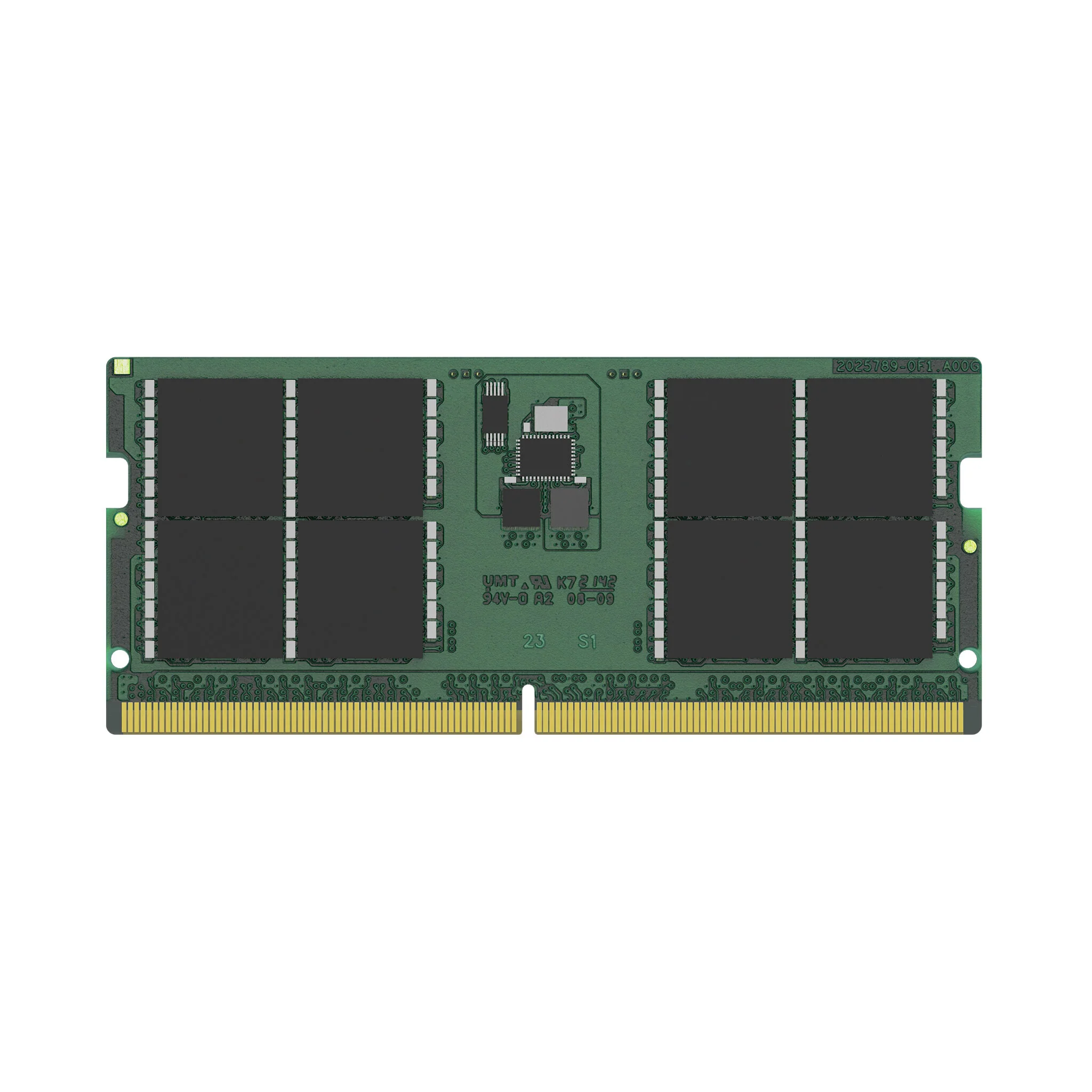

Kingston Technology ValueRAM KVR52S42BD8-32 memory module 32 GB 1 x 32 GB DDR5 5200 MHz
HomeStore

Kingston Technology ValueRAM KVR52S42BD8-32 memory module 32 GB 1 x 32 GB DDR5 5200 MHz

Kingston Technology ValueRAM KVR52S42BD8-32 memory module 32 GB 1 x 32 GB DDR5 5200 MHz

32GB DDR5 5200MT/s Non-ECC Unbuffered SODIMM CL42 2Rx8 1.1V 262-pin 16Gbit

This document describes ValueRAM's KVR52S42BD8-32 is a 4G x 64-bit (32GB) DDR5-5200 CL42 SDRAM (Synchronous DRAM), 2Rx8, memory module, based on sixteen 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5200 timing of 42-42-42 at 1.1V. Each 262-pin SODIMM uses gold contact fingers.

Features
Lead plating Gold
SPD profile Yes
Module configuration 4096M x 64
Memory voltage 1.1 V
Memory ranking 2
CAS latency 42
On-Die ECC Yes
ECC No
Memory form factor 262-pin SO-DIMM
Component for Laptop
Memory clock speed 5200 MHz
Internal memory type DDR5
Memory layout (modules x size) 1 x 32 GB
Internal memory 32 GB
Buffered memory type Unregistered (unbuffered)
Operational conditions
Storage temperature (T-T) -55 - 100 °C
Operating temperature (T-T) 0 - 85 °C
General
Product Family ValueRAM
Sustainability
Doesn't contain Halogen
Sustainability certificates RoHS
Technical details
Compliance certificates RoHS
Weight & dimensions
Height 30 mm
Width 69.6 mm
